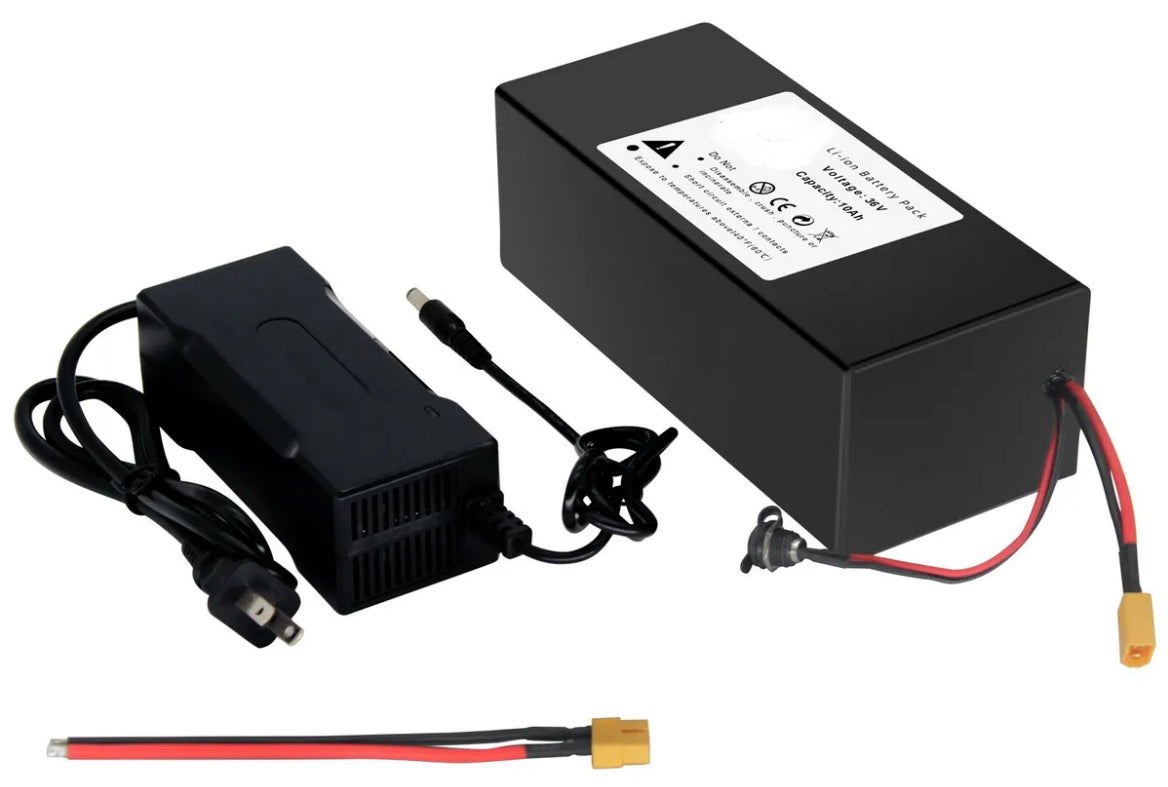

36v 10ah lithium ion battery


Regular price $250.00
Specification

  • Normimal Voltage: 36V
  • Capacity Nominal(Rated*): 10Ah
  • Norminal Energy: 360Wh
  • Size:209x70x90mm/8.22x2.76x3.54in
  • Weight: 2.1kg/4.7lbs

Operating Specifications

  • Cut off Voltage: 25v
  • Rated Voltage: 37v
  • Operating Voltage: 42V-25V
  • Maximum Discharge Current Continuous (Peak): 25A(50A)
  • Temperature Range**  Discharge (Charge): -20℃ to 60℃ (0 to 60 ℃)

Integrated PCB Features

  • Cell balancing.
  • Overcurrent cutoff
  • Overcharge protection
  • Overdischarge protection
  • Short circuit protection

Integrated thermal management

Our batteries are protected by our proprietary phase change composite. The PCB absorbs waste heat ensuring uniform pack temperature and has passed the UL 94 flammability test with V-0 rating. The result is industry leading safety with extended cycle life.
