Bafang 1000watt BBSHD Mid-drive 100mm kit

$750.00

$800.00

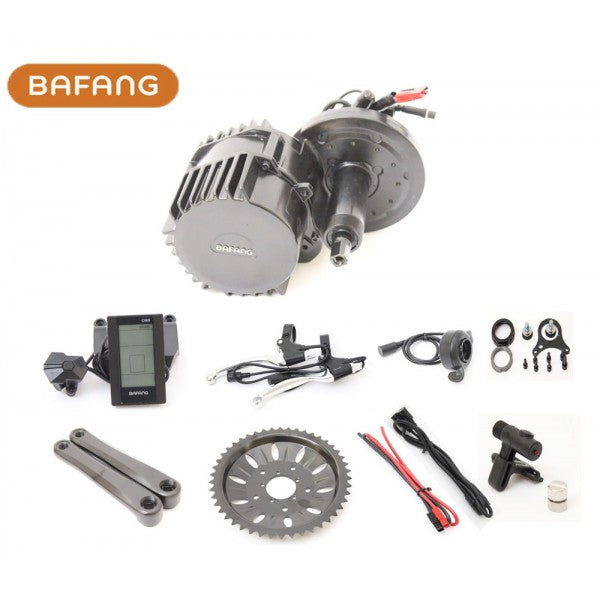

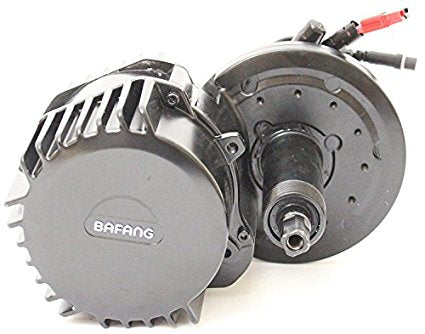

  • 1 pcs 48V 1000W BBSHD Bafang Central Motor with integrated controller.
  • 1 pcs of LCD disply.
  • 1 pcs 46 tooth chainwheel.
  • 1 pair of crankset (does not include pedals)
  • 1 pcs EB-Bus Waterproof interconnecting cable.
  • 1 pcs thumb throttle
  • 1 pair of ebrake lever

    Speciifcation:

    • 30A max current.
    • suitable for 48V or 52v battery, LVC by integrated controller(low voltage cut off): 41V.
    • number of assist levels are adjustable by the display.
    • wheel size can be adjusted from the display.
    • this 1000W kit is only really powerful enough to reach speeds in the region of 40km/h on the flat.
    • speed limit can be set via the display (model dependent)
    • Construction: Geared Motor
    • PAS Sensor
    • Weight: 4.8kg
    • RPM: 130-150
    • Max Torque: 160 N.m
    • Efficiency: ≥ 85 %
    • Megnet Poles: 16
    • Noise: < 55 dB
    • Waterproof Grade: IP65
